Project Description
CORNER SHOWER ENCLOSURE
Flip Door + Door

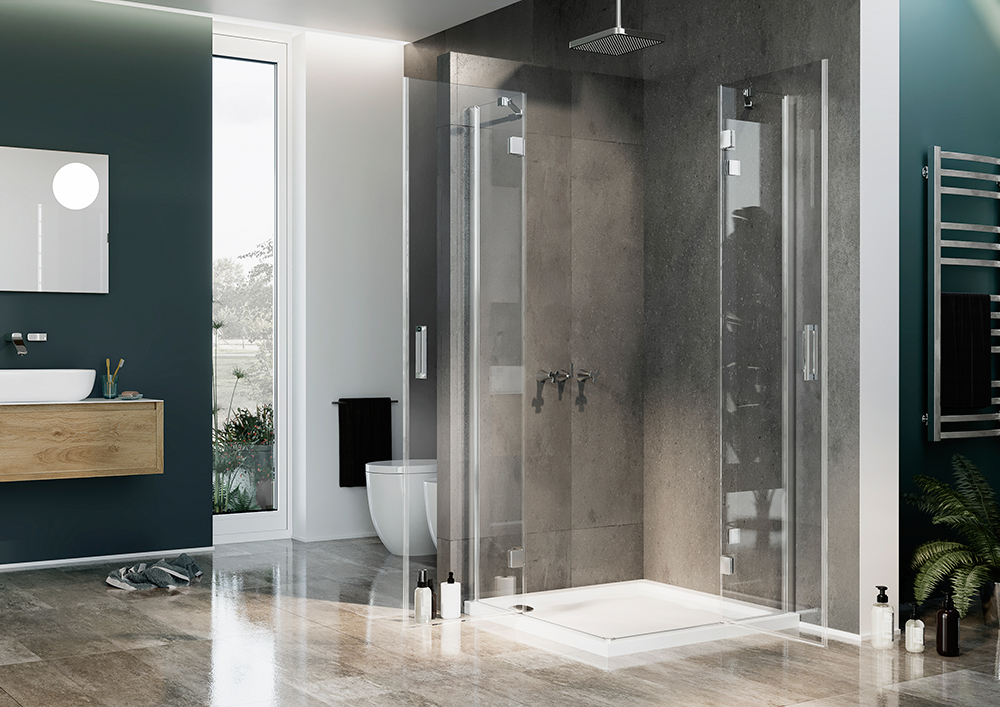

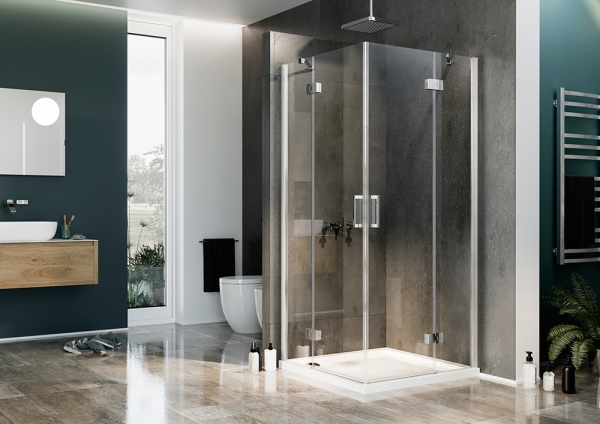

The Flip line represents the development of the bathroom environment thanks to focusing on the essential integral elements: pivot doors fastened by hinges on fixed panes. This project has all the essential features for functionality, linear form, simple installation and extraordinary performance of the shower space

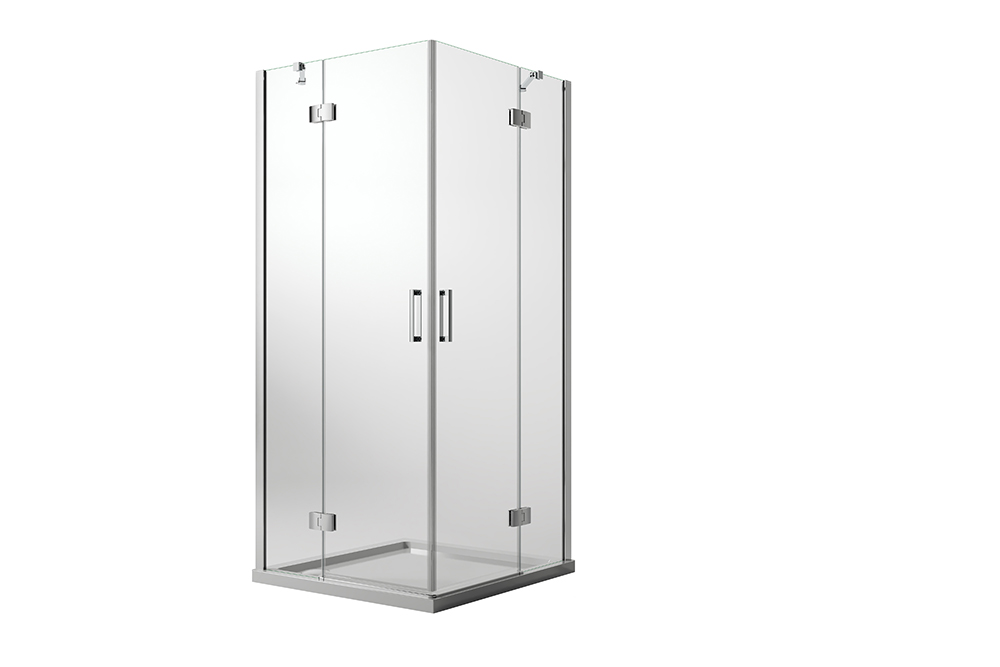

- Shower cubicle composed of 2 sides, each of which with 1 fixed panes and 1 pivot door

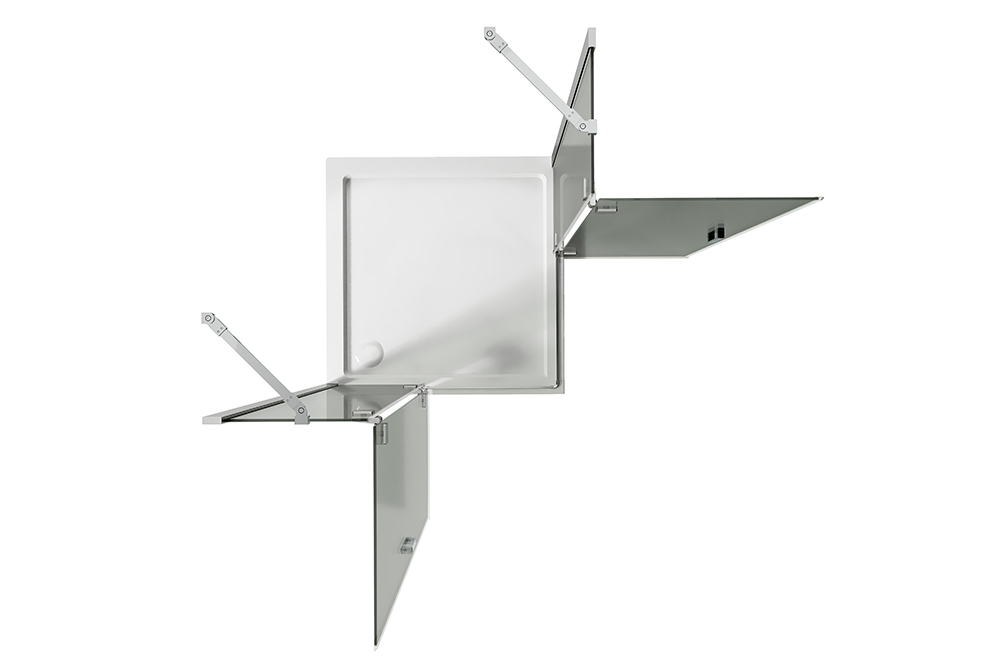

- Pivot door opening system based on hinges with outside opening (max 90°)
- 6 mm toughened safety clear-glass with antiscale Easyclean treatment
- Item height: 1900 mm
- Antiscale treatment on the glass
- Anodized aluminium profiles with chrome finish
- Magnetic closing of doors
- Gaskets with anti-leaking sealing flap on the doors
- Small bottom stick in order to have a great accessibility and eliminate architectural barriers
- Including 2 steel support bars with 45° angle, 1000 mm length which can be reduced depending on your need
- Square stainless steel handles
- Reversible item for left or right hand installation (Eg. 700×900 or 900×700 mm)
- This item is extremely recommended for people with walking difficulties thanks to the wide opening
- Adjustable up to 20 mm for a correct installation, even if walls are not absolutely level (E.g. the 700×1000 mm variation can be adjusted from 680×980 mm up to 700×1000 mm)
- You can enlarge the width of the shower cubicle’s sides 20 mm for side, by buying separately the suitable compensation profiles (E.g. Shower cubicle Flip 700×1000 mm + 1 profile item P207COMP -> shower cubicle 720×1000 mm; 700×1000 mm + 2 profiles item P2107COMP-> Shower cubicle 720×1020 mm)
- Including upper caps
- Shower tray not included
- CE certified product according to the new European Regulation No. 305/2011
- 24 months warranty
| Dimension | Width A | Width B | Opening | Height |
|---|---|---|---|---|
| 70×70 CM | From 68 to 70 CM | From 68 to 70 CM | 70 CM | 190 CM |
| 70×75 CM | From 68 to 70 CM | From 73 to 75 CM | 70 CM | 190 CM |
| 70×80 CM | From 68 to 70 CM | From 78 to 80 CM | 70 CM | 190 CM |
| 70×90 CM | From 68 to 70 CM | From 88 to 90 CM | 70 CM | 190 CM |
| 70×100 CM | From 68 to 70 CM | From 98 to 100 CM | 70 CM | 190 CM |
| 70×120 CM | From 68 to 70 CM | From 118 to 120 CM | 78 CM | 190 CM |
| 75×75 CM | From 73 to 75 CM | From 73 to 75 CM | 70 CM | 190 CM |
| 75×80 CM | From 73 to 75 CM | From 78 to 80 CM | 70 CM | 190 CM |
| 75×90 CM | From 73 to 75 CM | From 88 to 90 CM | 70 CM | 190 CM |
| 75×100 CM | From 73 to 75 CM | From 98 to 100 CM | 70 CM | 190 CM |
| 75×120 CM | From 73 to 75 CM | From 118 to 120 CM | 78 CM | 190 CM |
| 80×80 CM | From 78 to 80 CM | From 78 to 80 CM | 70 CM | 190 CM |
| 80×90 CM | From 78 to 80 CM | From 88 to 90 CM | 70 CM | 190 CM |
| 80×100 CM | From 78 to 80 CM | From 98 to 100 CM | 70 CM | 190 CM |
| 80×120 CM | From 78 to 80 CM | From 118 to 120 CM | 78 CM | 190 CM |
| 90×90 CM | From 88 to 90 CM | From 88 to 90 CM | 70 CM | 190 CM |
| 90×100 CM | From 88 to 90 CM | From 98 to 100 CM | 70 CM | 190 CM |
| 90×120 CM | From 88 to 90 CM | From 118 to 120 CM | 78 CM | 190 CM |
| 100×100 CM | From 98 to 100 CM | From 98 to 100 CM | 70 CM | 190 CM |
| 100×120 CM | From 98 to 100 CM | From 118 to 120 CM | 78 CM | 190 CM |
| 120×120 CM | From 118 to 120 CM | From 118 to 120 CM | 85 CM | 190 CM |
Download assembly instructions.
